SAKAGAMI SEAL
มีผู้ชม 4017 ครั้ง
| GLY -Packings |
| Pneumatic packings for Pistons and Rods |
Unit : mm
| Part No. |

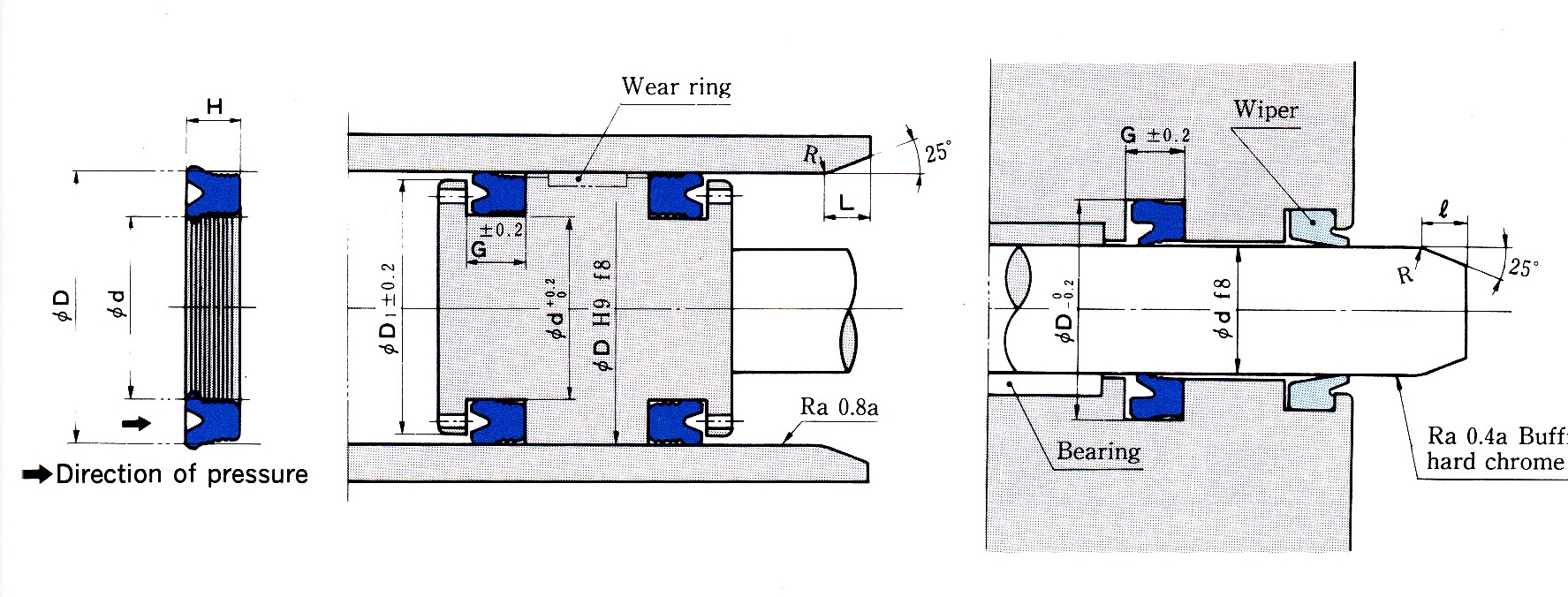

Packing & Groove dimensions |
| NBR Shore A 70 |
d |
D |
H |
G |
D1 |
| GLY - 10 |
10 |
18 |
5 |
5.7 |
17.1 |
| GLY - 12 |
12 |
20 |
5 |
5.7 |
19.1 |
| GLY - 14 |
14 |
22 |
5 |
5.7 |
21.1 |
| GLY - 16 |
16 |
24 |
5 |
5.7 |
23.1 |
| GLY - 17 |
17 |
25 |
5 |
5.7 |
24.1 |
| |
|
|
|
|
|
| GLY - 18 |
18 |
26 |
5 |
5.7 |
25.1 |
| GLY - 20 |
20 |
28 |
5 |
5.7 |
27.1 |
| GLY - 22.4 |
22.4 |
30 |
5 |
5.7 |
29.1 |
| GLY - 25 |
25 |
33 |
5 |
5.7 |
32.1 |
| GLY - 27 |
27 |
35 |
5 |
5.7 |
34.1 |
| |
|
|
|
|
|
| GLY - 28 |
28 |
36 |
5 |
5.7 |
35.1 |
| GLY - 30 |
30 |
40 |
6 |
7 |
39 |
| GLY - 31.5 |
31.5 |
41.5 |
6 |
7 |
40.5 |
| GLY - 32 |
32 |
42 |
6 |
7 |
41 |
| GLY - 35 |
35 |
45 |
6 |
7 |
44 |
| |
|
|
|
|
|
| GLY - 35.5 |
35.5 |
45.5 |
6 |
7 |
44.5 |
| GLY - 36 |
36 |
46 |
6 |
7 |
45 |
| GLY - 40 |
40 |
50 |
6 |
7 |
49 |
| GLY - 45 |
45 |
55 |
6 |
7 |
54 |
| GLY - 50 |
50 |
60 |
6 |
7 |
59 |
| |
|
|
|
|
|
| GLY - 53 |
53 |
63 |
6 |
7 |
62 |
| GLY - 55 |
55 |
65 |
6 |
7 |
64 |
| GLY - 60 |
60 |
70 |
6 |
7 |
69 |
| GLY - 63 |
63 |
73 |
6 |
7 |
72 |
| GLY - 65 |
65 |
75 |
6 |
7 |
74 |
Unit : mm
| Part No. |
Packing & Groove dimensions |
| NBR Shore A 70 |
d |
D |
H |
G |
D1 |
| GLY - 70 |
70 |
80 |
6 |
7 |
79 |
| GLY - 75 |
75 |
85 |
6 |
7 |
84 |
| GLY - 80 |
80 |
90 |
6 |
7 |
89 |
| GLY - 85 |
85 |
100 |
9 |
10 |
98.5 |
| GLY - 95 |
95 |
110 |
9 |
10 |
108.5 |
| |
|
|
|
|
|
| GLY - 100 |
100 |
115 |
9 |
10 |
113.5 |
| GLY - 105 |
105 |
120 |
9 |
10 |
118.5 |
| GLY - 110 |
110 |
125 |
9 |
10 |
123.5 |
| GLY - 115 |
115 |
130 |
9 |
10 |
128.5 |
| GLY - 125 |
125 |
140 |
9 |
10 |
138.5 |
| |
|
|
|
|
|
| GLY - 135 |
135 |
150 |
9 |
10 |
148.5 |
| GLY - 145 |
145 |
160 |
9 |
10 |
158.5 |
| GLY - 160 |
160 |
175 |
9 |
10 |
173.5 |
| GLY - 165 |
165 |
180 |
9 |
10 |
178.5 |
| GLY - 175 |
175 |
190 |
9 |
10 |
188.5 |
| |
|
|
|
|
|
| GLY - 180 |
180 |
200 |
12 |
13 |
198 |
| GLY - 185 |
185 |
205 |
12 |
13 |
203 |
| GLY - 200 |
200 |
220 |
12 |
13 |
218 |
| GLY - 215 |
215 |
235 |
12 |
13 |
233 |
| GLY - 230 |
230 |
250 |
12 |
13 |
248 |
|
 |
